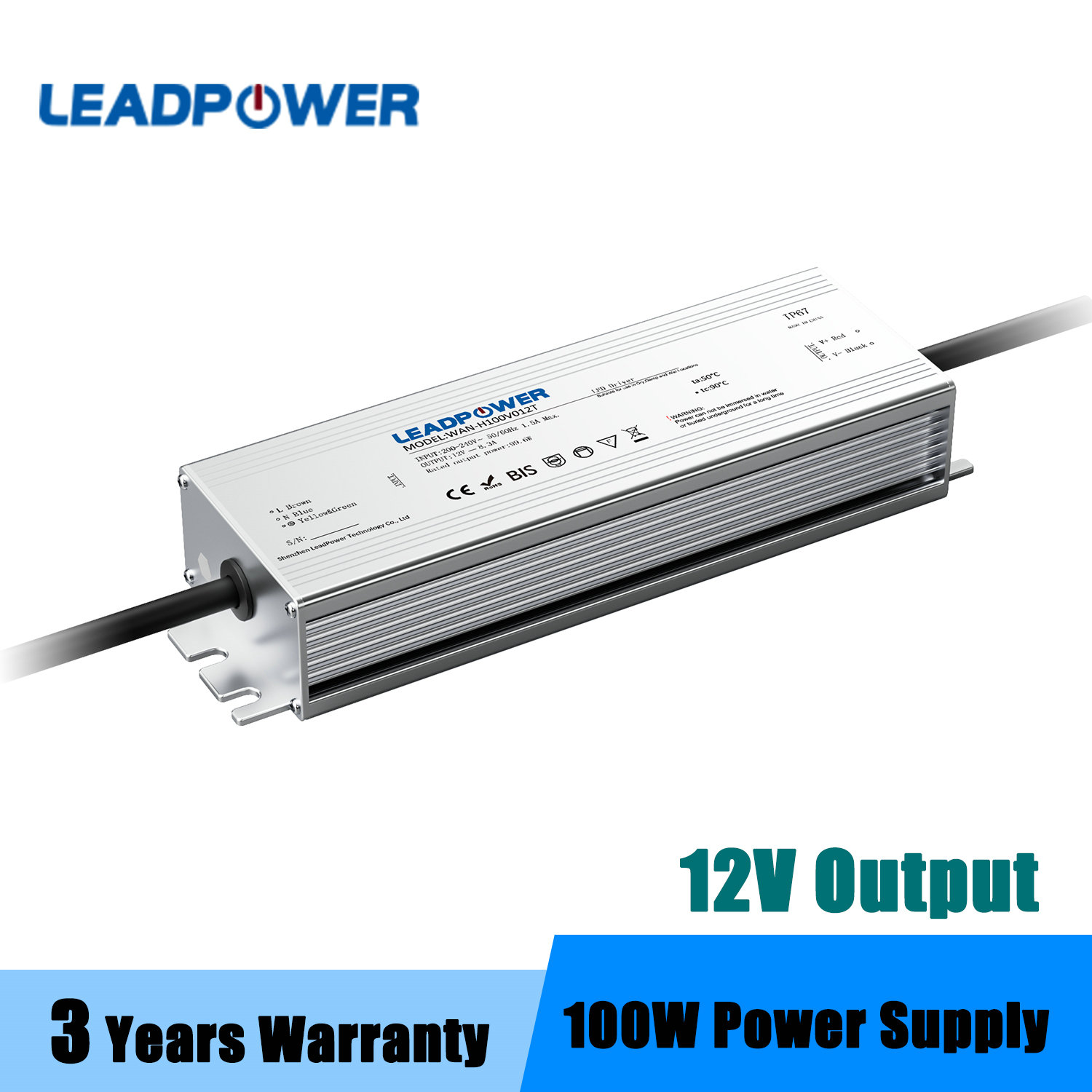

1
|
Input
|
|
No.
|
Item
|
Technical Requirements
|
Unit
|
Note
|
|
1.1
|
Rated Input Voltage
|
200~240
|
Vac
|
|
|
1.2
|
Input Voltage Range
|
176～264
|
Vac
|
Refer to derating curve
|
|
1.3
|
Rated Frequency
|
50/60
|
Hz
|
|
|
1.4
|
Frequency Range
|
47~63
|
Hz
|
|
|
1.5
|
Max. Input Current
|
1.2
|
A
|
Vin=190Vac, rated load
|
|
1.6
|
Inrush Current
|
≤50
|
A
|
240Vac input, 25℃, cold start
|
|
2
|
Output
|
|
No.
|
Item
|
Technical Requirements
|
Unit
|
Note
|
|
2.1
|
Rated output voltage
|
12
|
Vdc
|
|
|
2.2
|
Rated output current
|
8.3
|
A
|
|
|
2.3
|
Max Output power
|
99.6
|
W
|
Refer to derating curve
|
|
2.4
|
Efficiency
|
≥86%
|
-
|
25℃, 230Vac input, rated load
|
|
2.5
|
Line regulation
|
±1%
|
|
|
|
2.6
|
Load regulation
|
±2%
|
|
|
|
2.7
|
Voltage tolerance
|
±2%
|
|
|
|
2.8
|
Ripple & Noise
|
≤300
|
mVp-p
|
25℃, rated input, rated load, bandwidth of 20MHz, connected a 10uF electrolytic capacitor and a 0.1uF ceramic capacitor in parallel to the output terminals.
|
|
2.9
|
Dynamic Response Overshoot
|
≤5
|
%
|
5%~50%~25%, 50%~75%~50 load dynamics, half-wave period is 4mS, current change slope is 0.1A/uS
|
|
2.10
|
Dynamic Response Recovery Time
|
200
|
us
|
|
2.11
|
Turn-on Delay Time
|
≤3
|
s
|
200~240Vac input, rated load
|
|
2.12
|
Output Voltage Rise Time
|
≤70
|
ms
|
200~240Vac input, rated load,25℃
|
|
2.13
|
Turn-on/off Overshoot
|
≤±10%
|
|
|
|
3
|
Protection
|
|
No.
|
Item
|
Technical Requirements
|
Unit
|
Note
|
|
3.1
|
Over Current Protection
|
9.5～12
|
A
|
Hiccup model, recovers automatically after fault condition is removed
|
|
3.2
|
Short Circuit Protection
|
Long time short-circuit protection without damage, recovers automatically after fault condition is removed.
|
