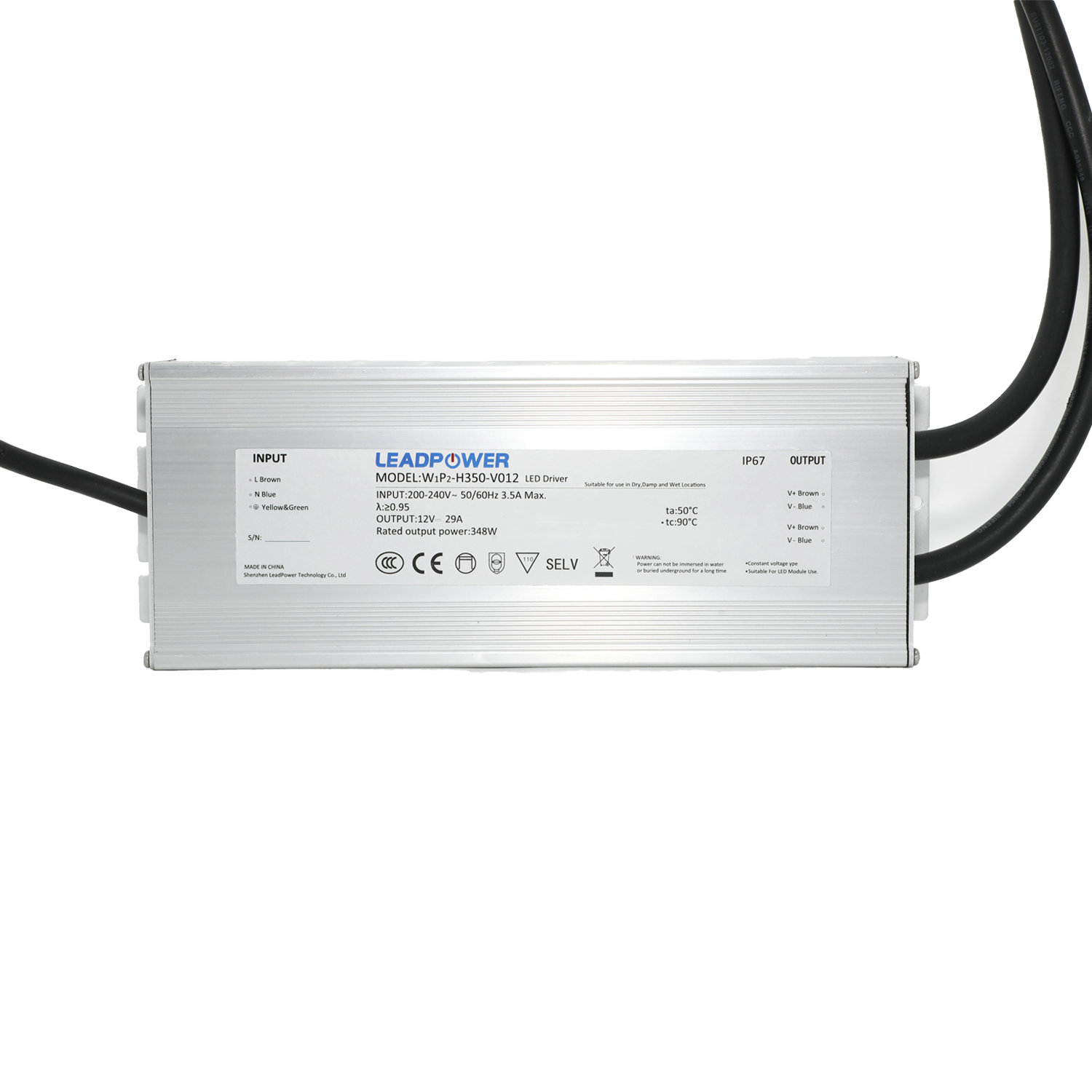

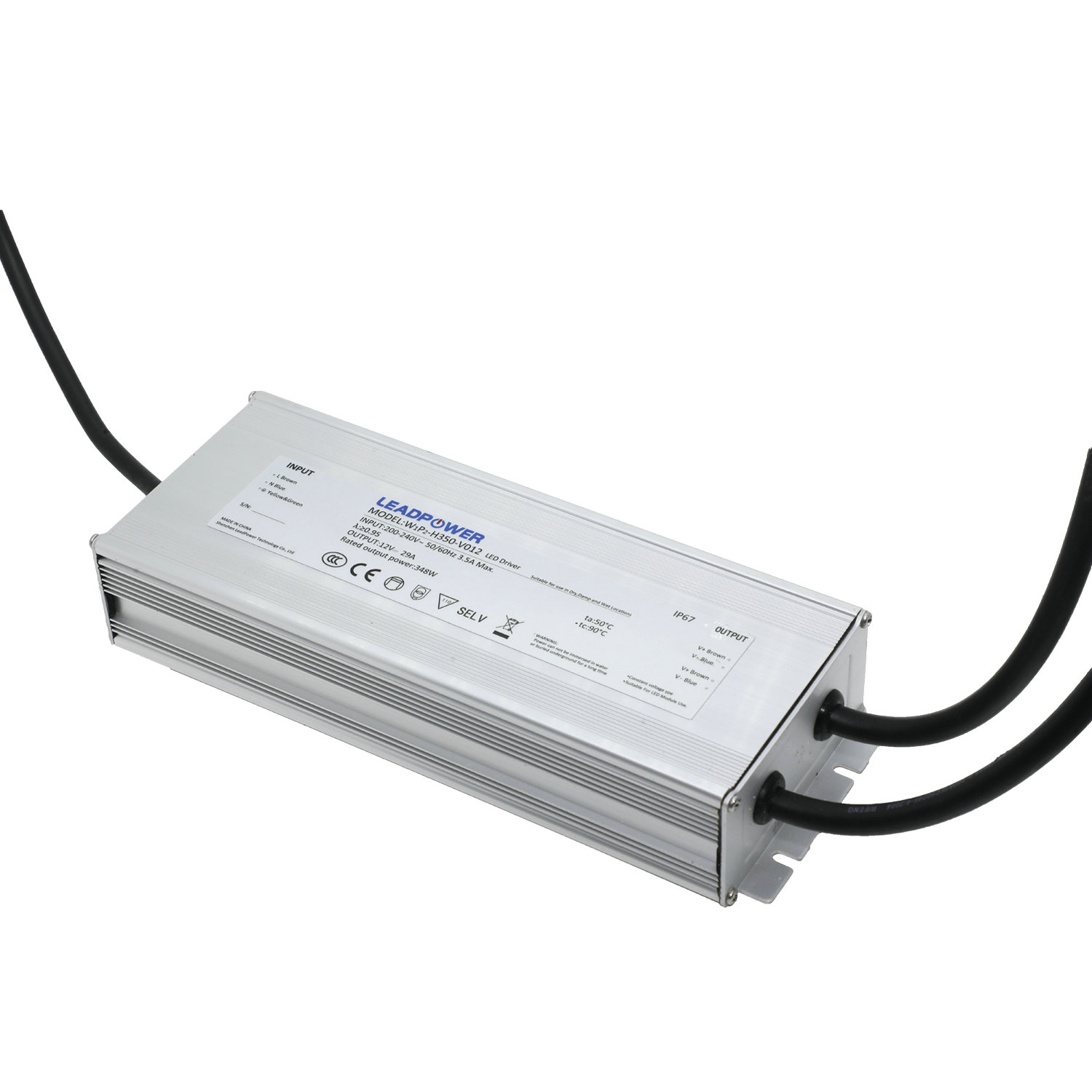

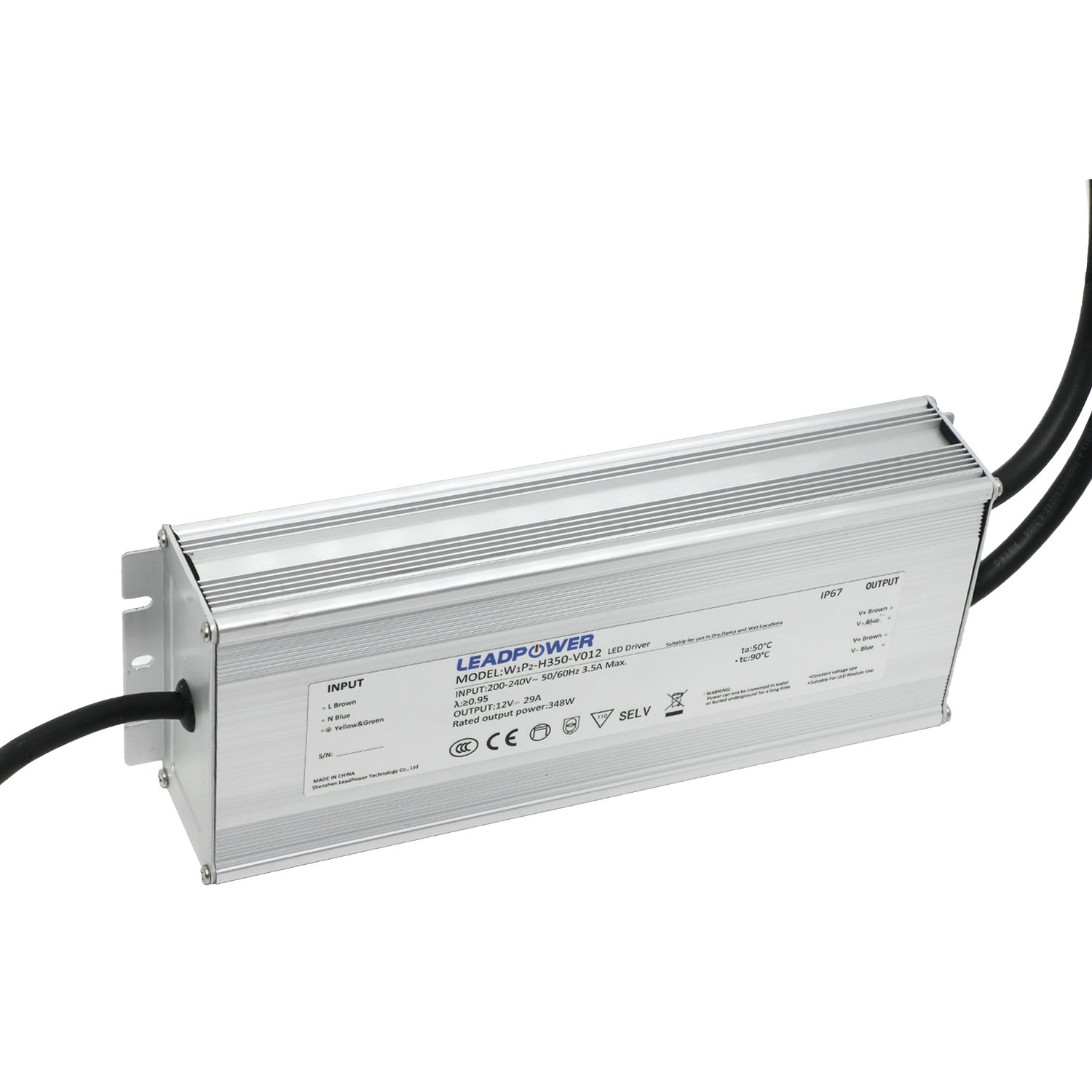

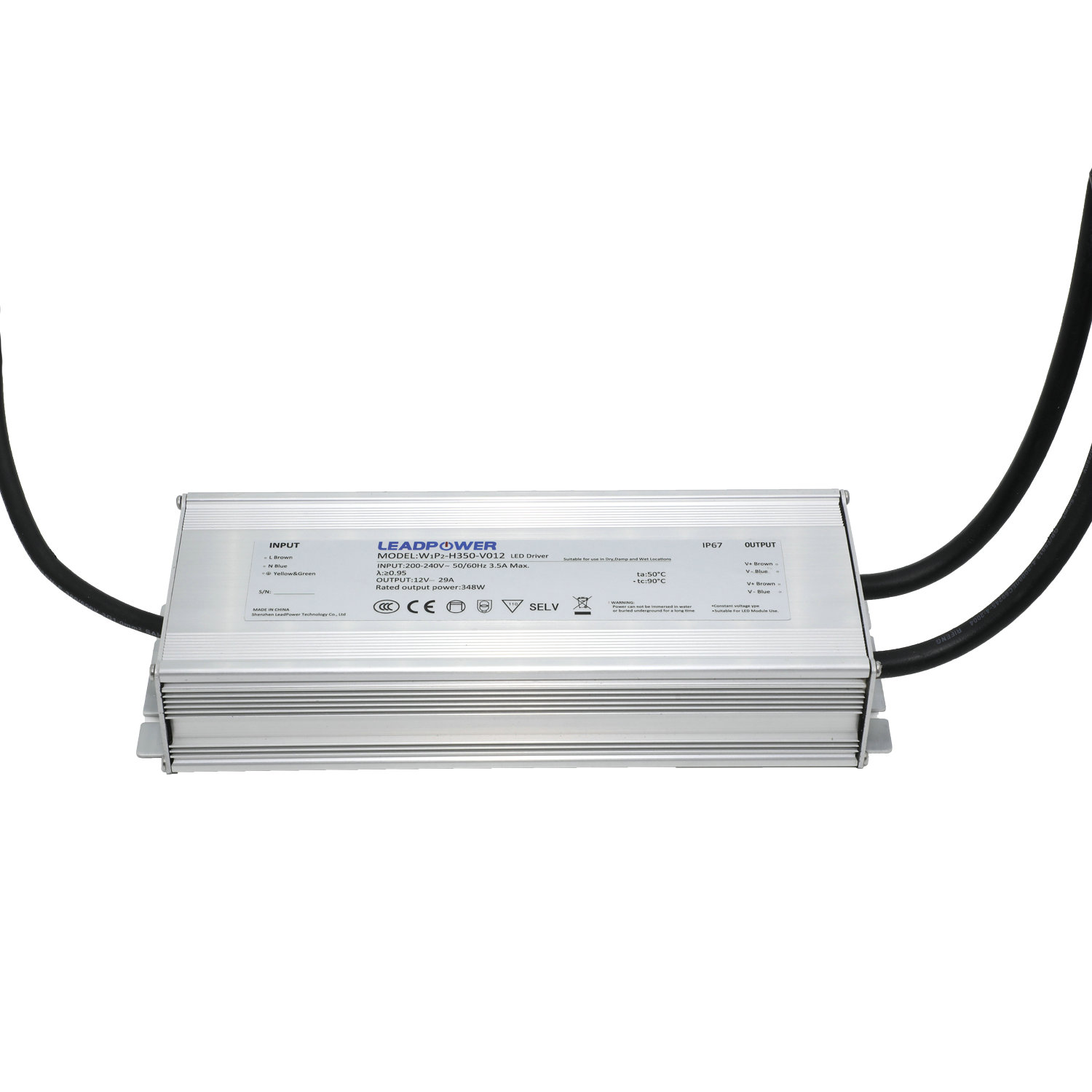

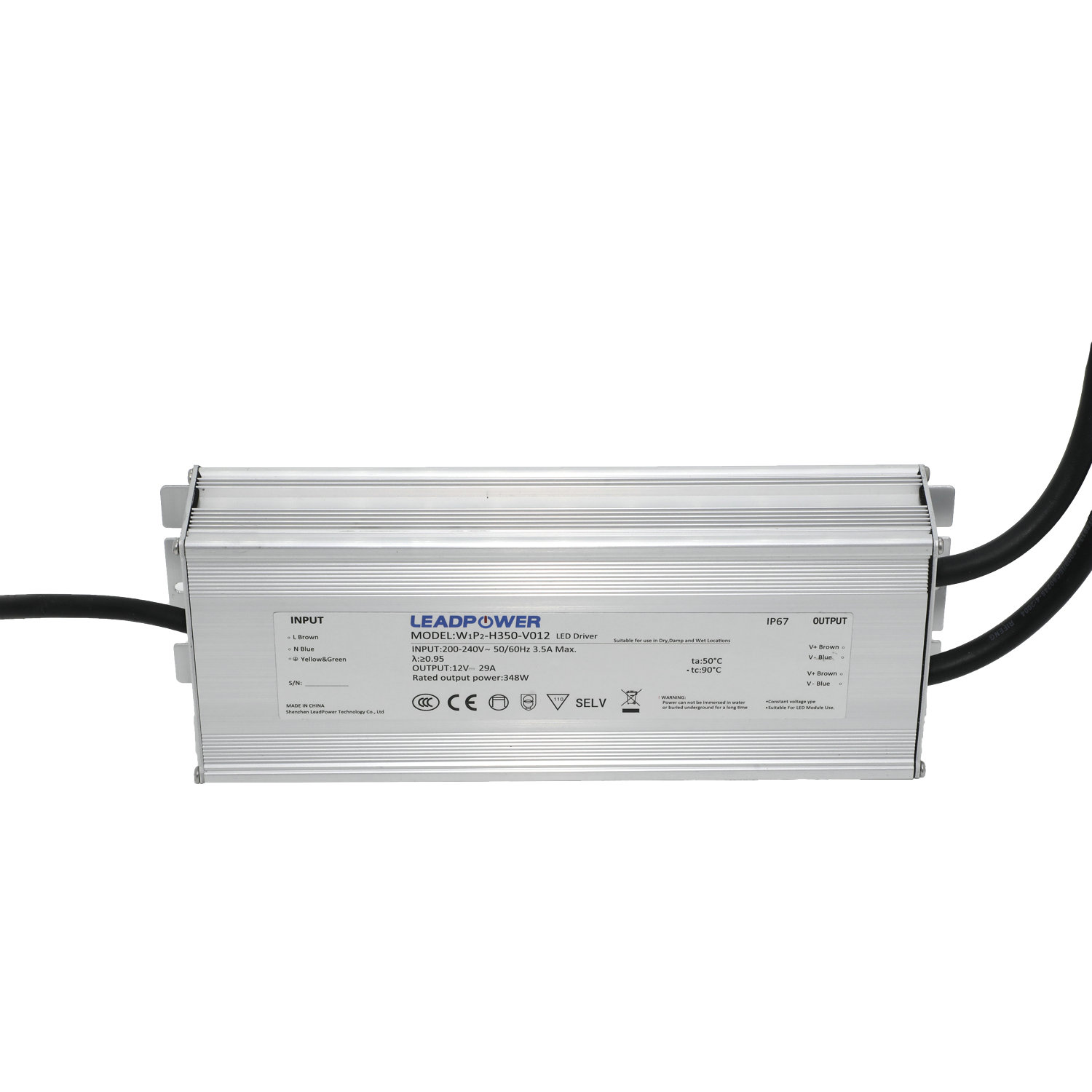

| Model | WBP-H350-V012 | ||||
| Input | Rated Input Voltage | 200-240Vac | |||
| Input Voltage Range | 180～264Vac | ||||
| Frequency Range | 47～63（Typ. 50/60）HZ | ||||
| Max. Input Current | ≤3.5A | ||||
| Inrush Current | ≤25A | ||||
| PF | ≥0.95 | ||||
| THD | ≤15% | ||||
| Output | Rated output voltage | 12V | |||
| Rated Output Current | 29A | ||||
| Max. Output Power | 348W | ||||
| Efficiency | ≥90%（Typical 92%） | ||||
| Output Ripple & Noise | ≤300mVp-p | ||||
| Line regulation | ±1% | ||||
| Load regulation | ±2% | ||||
| Voltage tolerance | ≤±2% | ||||
| Environment Condition | Range of working temperature | -40~ +70（Typ. 25）℃ | |||
| Storage temperature | -45~+85（Typ. 25）℃ | ||||
| Relative Humidity | 10～95% | ||||
| Cooling Method | Air Convection | ||||
| Altitude | 0～5000m | ||||
| Protection Rating | IP67 | ||||
| Max. Case Temperature | 90℃ | ||||
| Safety | Leakage Current | ≤0.7mA | 240Vac/60Hz | ||
| Hi-pot | Input To Output | 3750Vac 60S，current≤10mA | No arc, no breakdown |
||
| Input To FG | 1750Vac 60S，current≤10mA | ||||
| Output To FG | 500Vac 60S，current≤10mA | ||||
| Insulation resistance | Input To Output | ≥10MΩ@ 500Vdc | 90%RH, 500VDC | ||
| Input To FG | ≥10MΩ@ 500Vdc | ||||
| Output To FG | ≥10MΩ@ 500Vdc | ||||
| Safety Standard | Compliance to IEC/EN61347-1、EN61347-2-13、 GB19510,UL1310,CCC,CB+CE(TUV) Passed |
||||
| EMC | Harmonic Current | Compliance to IEC 61000-3-2 Class C （@Load≥50%） |
|||
| Conducted Emissions (CE) | EN55015 | ||||
| Radiated Emissions (RE) | EN55015 | ||||
| Radiated, Radio-Frequency, Electromagnetic Field Immunity (RS) | IEC 61000-4-3 Level 2, IEC61547, Criterion B | ||||
| Conducted Immunity (CS) | IEC 61000-4-6 Level 2, IEC61547, Criterion B | ||||
| Electrical Fast Transient (EFT)/Burst | IEC 61000-4-4 Level 2, IEC61547, Criterion B | ||||
| Surge | IEC 61000-4-5 Differential Mode: ±2kV Common Mode: ±4kV Criterion B |
||||
| Protection | Over voltge protection | ≤15V | |||
| Over-temperature protection | 70-80℃ | Ambient Temperature, rated load | |||
| Input under voltage recovery value | 160～180Vac | ||||
| Output short-circuit protection | Hiccup mode, auto-recovery after fault condition is removed | ||||
| Reliability | MTBF | 25℃：100000Hrs，MIL-217 Method | |||
| Others | Dimension | 245*90*45（L*W*H） | |||
| Cooling method | √Ventilation Cooling ⬜air cooling | ||||
| Extension method | ⬜Three-proofing lacquer ⬜Stamped ⬜Low temperature start-up（-40℃）⬜Others |
||||
| Note | *Unless otherwise specified, all specifications are measured at an input of 230VAC, rated load, 25°C. *In order to extend the service life, it is recommended to leave an additional 30% margin when configuring the load. For example, if the device requires 100W of power, the power supply of not less than 130W is selected. * Switching power supply ripple test method: test on the power supply output terminal with a 20MHz oscilloscope, the ground length of the oscilloscope probe is not more than 12mm, and the probe input is paralleled with 47uF electrolytic capacitors and 0.1uF high frequency capacitors. *The power supply is part of the equipment system components, and all EMC tests need to be confirmed in conjunction with the end equipment for electromagnetic compatibility. |
||||
