| Model |

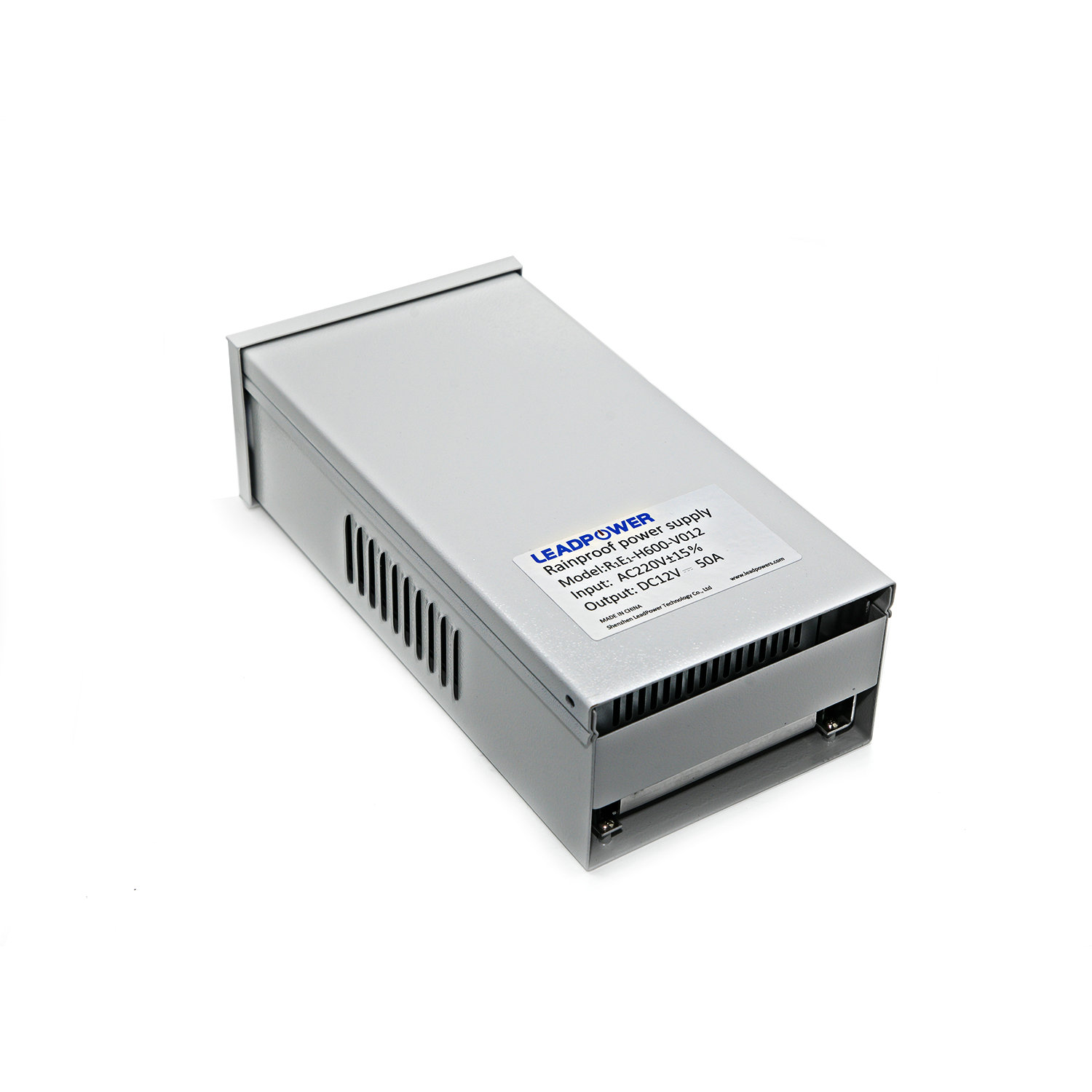

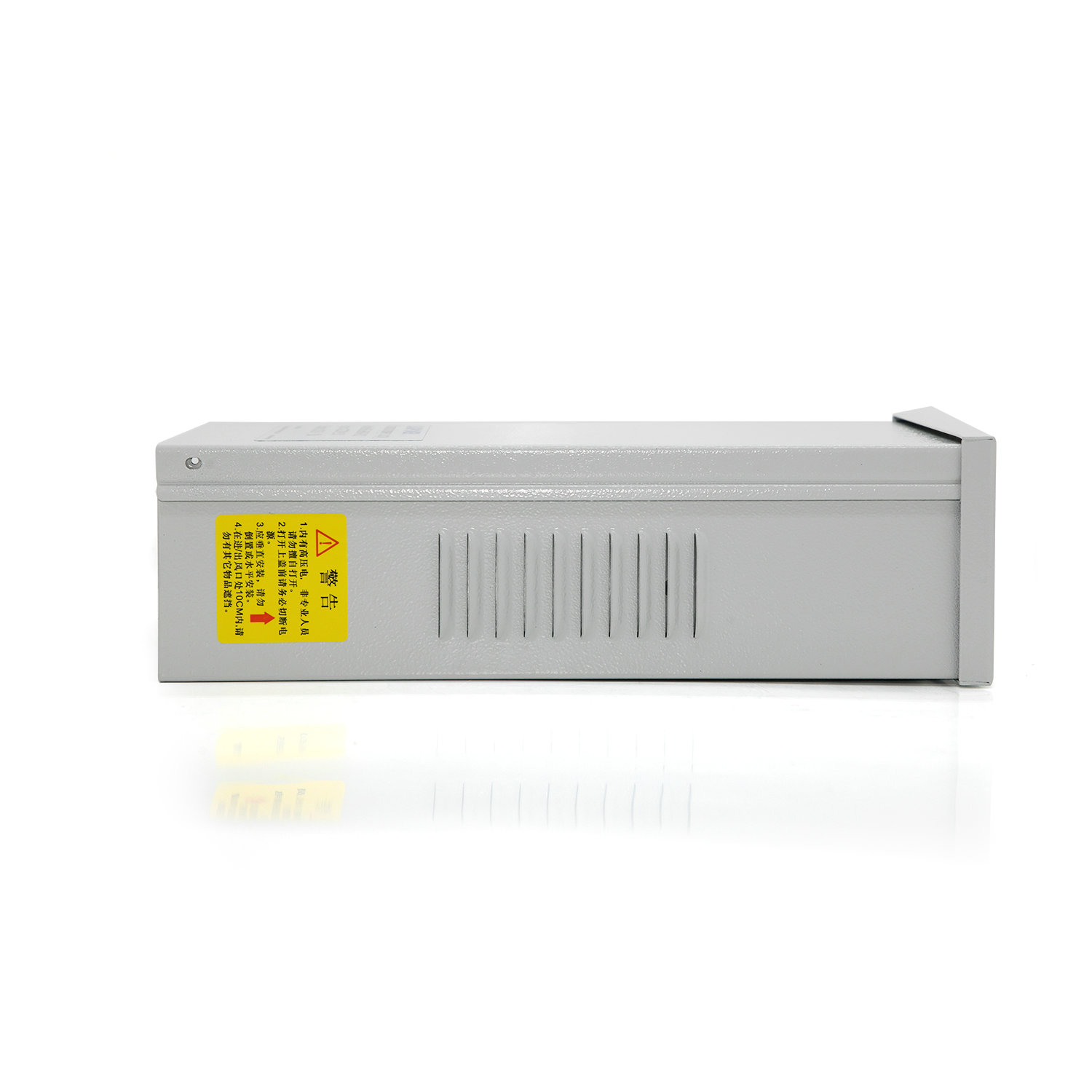

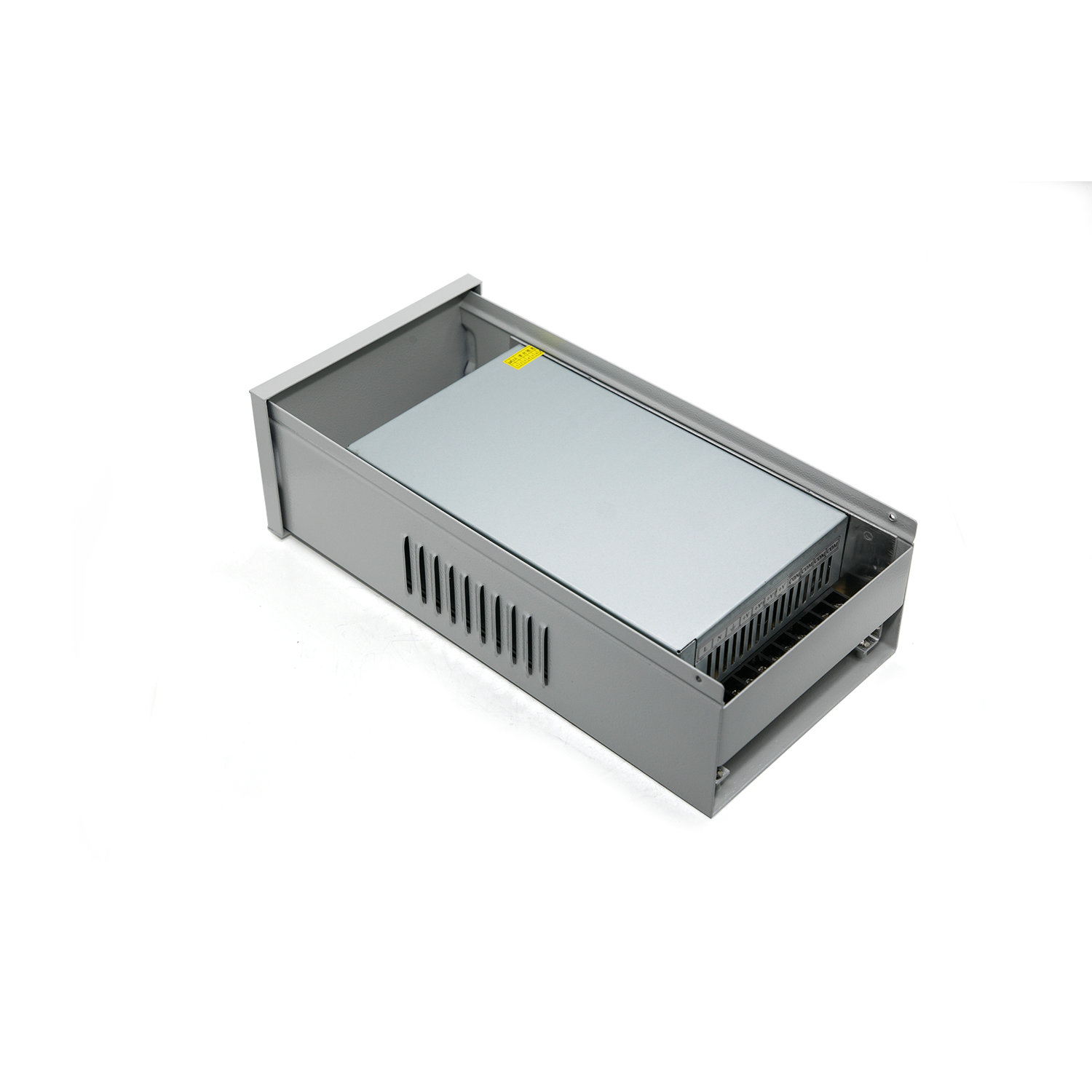

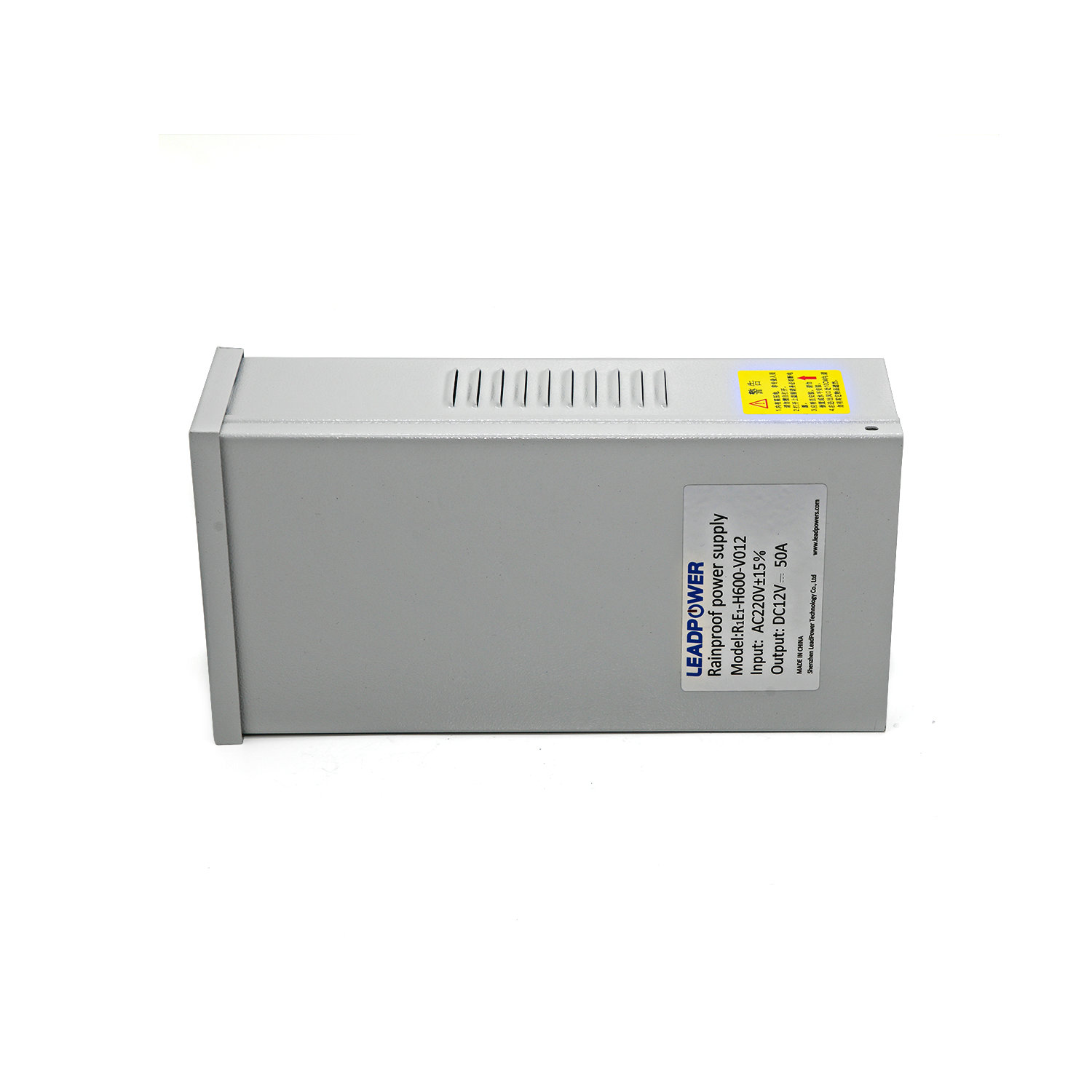

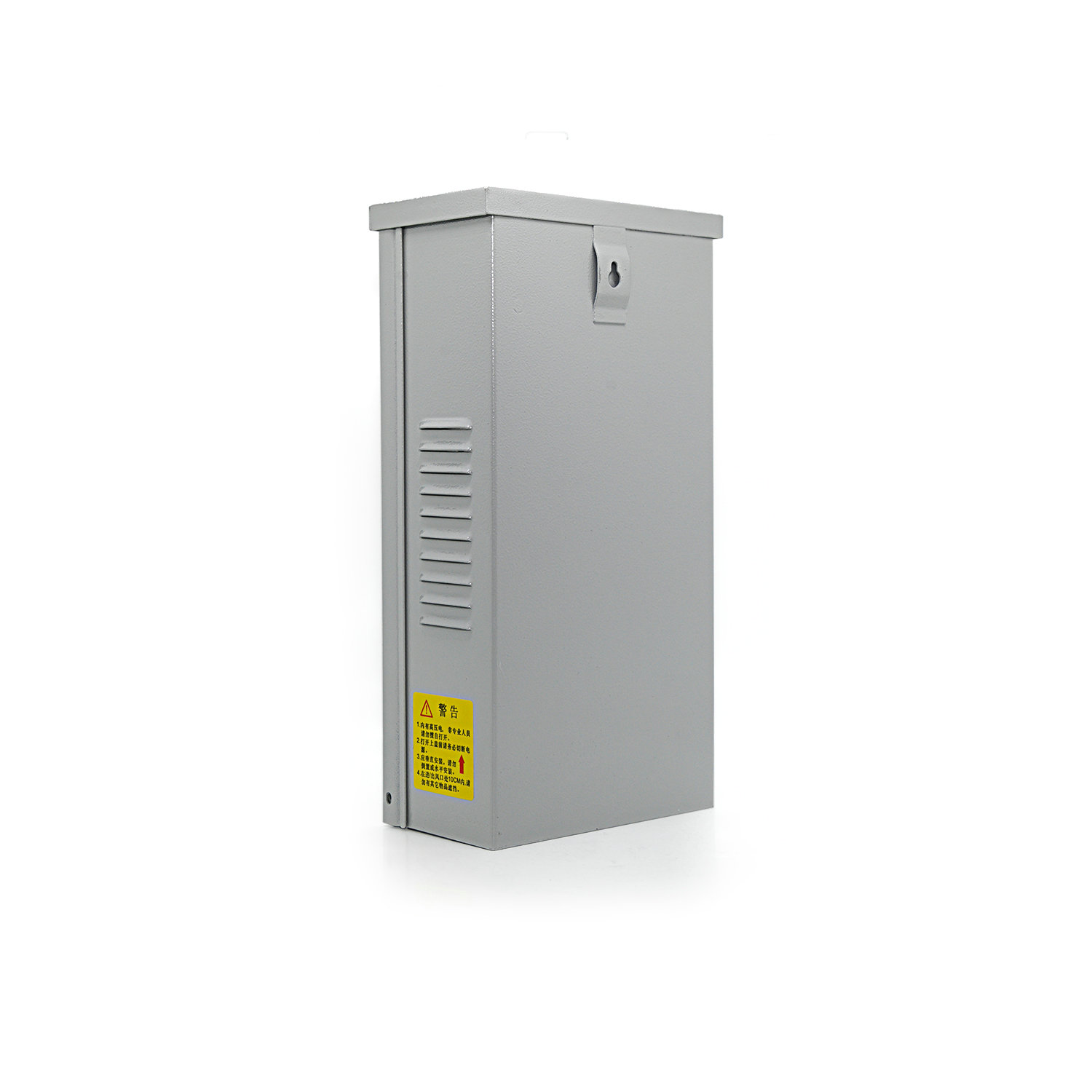

RAN-H600-V012 |
| Input |
Rated Input Voltage |
220-240/ 100-120VAC |
| Input Voltage Range |
190～264/ 90～130Vac |
| Frequency Range |
47～63（Typ. 50/60）HZ |
| Max. Input Current |
≤8A |
| Inrush Current |
≤110A |
| Output |
Rated output voltage |
12V |
| Rated Output Current |
50A |
| Max. Output Power |
600W |
| Efficiency |
≥87%（Typ. 88%） |
| Output Ripple & Noise |
≤300mVp-p |
| Dynamic Response Overshoot |
≤5% |
| Dynamic Response Recovery Time |
200μs |
| Line regulation |
±1% |
| Load regulation |
±2% |
| Voltage tolerance |
±2% |
| Environment Condition |
Range of working temperature |
-20~+50（Typ.25） |
| Storage temperature |
-40~+80（Typ. 25） |
| Relative Humidity |
5～90% |
| Cooling Method |
Forced-Air Cooling |
Built-in fan (do not block the air duct of the fan when using, so as not to affect normal use) |
| Atmospheric Pressure |
70～106Kpa |
| Altitude |
0～3000m |
| Safety &EMC |
Leakage Current |
Input To FG |
≤3.5mA |
240Vac/60Hz |
| Input To Output |
≤0.25mA |
| Dielectrical Strength |
Input To Output |
1500Vac/10mA/1min |
No arc,
no breakdown |
| Input To FG |
1500Vac/10mA/1min |
| Output To FG |
500Vac/10mA/1min |
| Insulation resistance |
Input To Output |
≥10MΩ@ 500Vdc |
1atm, 90%RH, 500VDC |
| Input To FG |
≥10MΩ@ 500Vdc |
| Output To FG |
≥10MΩ@ 500Vdc |
| Safety Standards |
UL60950,IEC/EN60950, GB4943.1-2011 |
| EMS |
Surge：IEC61000-4-5 Line to Line:±2kV, Line to FG:±4kV |
| Protection |
Over voltge protection |
≤16V |
Hiccup mode, recovers automatically after fault condition is removed. |
| Overload protection |
65～80A, Hiccup mode, recovers automatically after fault condition is removed. |
| Over-temperature protection |
/Optional |
Ambient Temperature, Rated load |
| Output short-circuit protection |
Recovers automatically after fault condition is removed. |
| Reliability |
MTBF |
25℃：100000Hrs，MIL-217 Method |
| Others |
Cooling method |
⬜Ventilation Cooling √air cooling |
| Dimensions |
292*151*90mm (L*W*H) |
| Extension method |
⬜Three-proofing lacquer ⬜Stamped
⬜Low temperature start-up（-40℃）⬜Others |
| Note |
*Unless otherwise specified, all specifications are measured at an input of 230VAC, rated load, 25°C.
*In order to extend the service life, it is recommended to leave an additional 30% margin when configuring the load. For example, if the device requires 100W of power, the power supply of not less than 130W is selected.
* Switching power supply ripple test method: test on the power supply output terminal with a 20MHz oscilloscope, the ground length of the oscilloscope probe is not more than 12mm, and the probe input is paralleled with 47uF electrolytic capacitors and 0.1uF high frequency capacitors.
*The power supply is part of the equipment system components, and all EMC tests need to be confirmed in conjunction with the end equipment for electromagnetic compatibility. |
