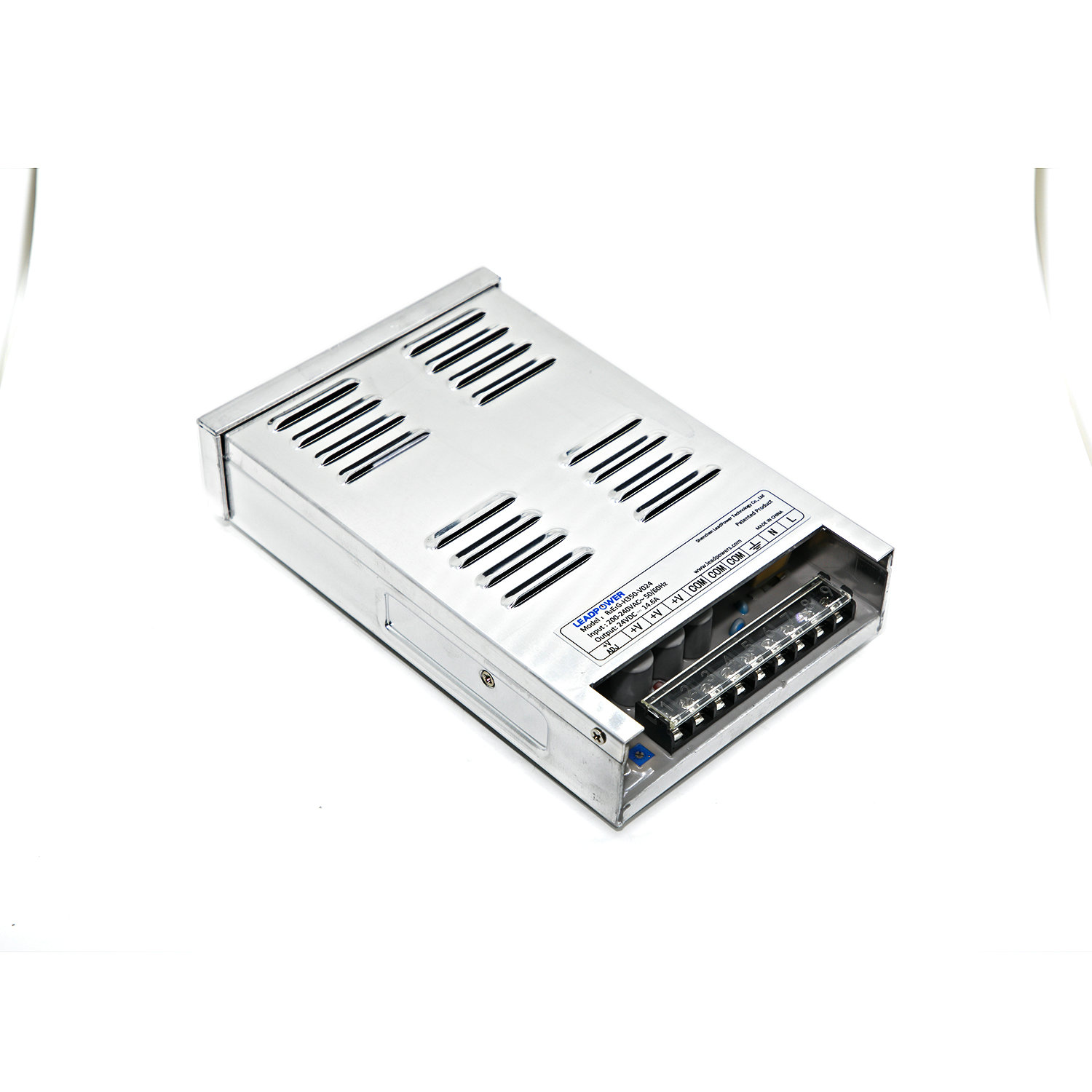

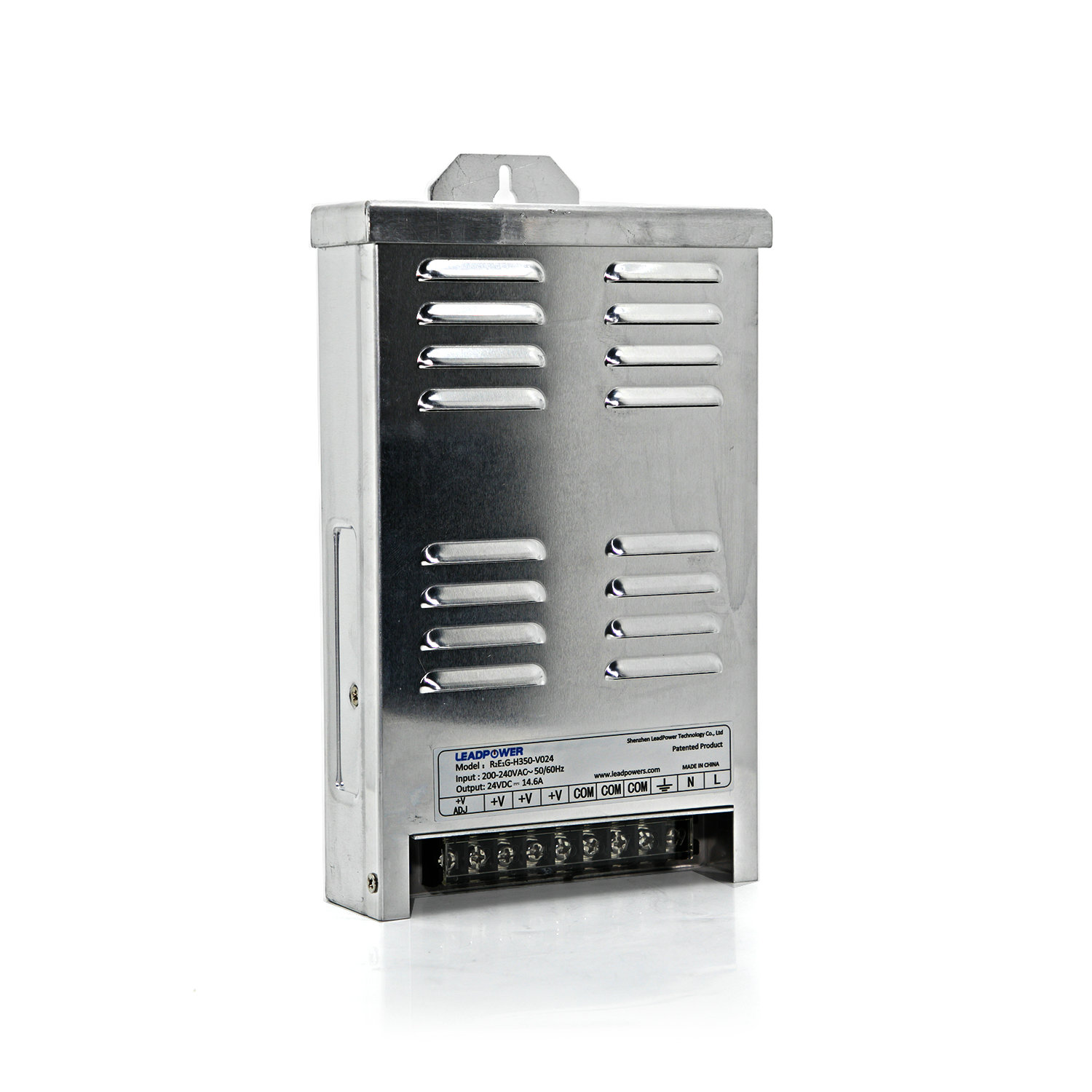

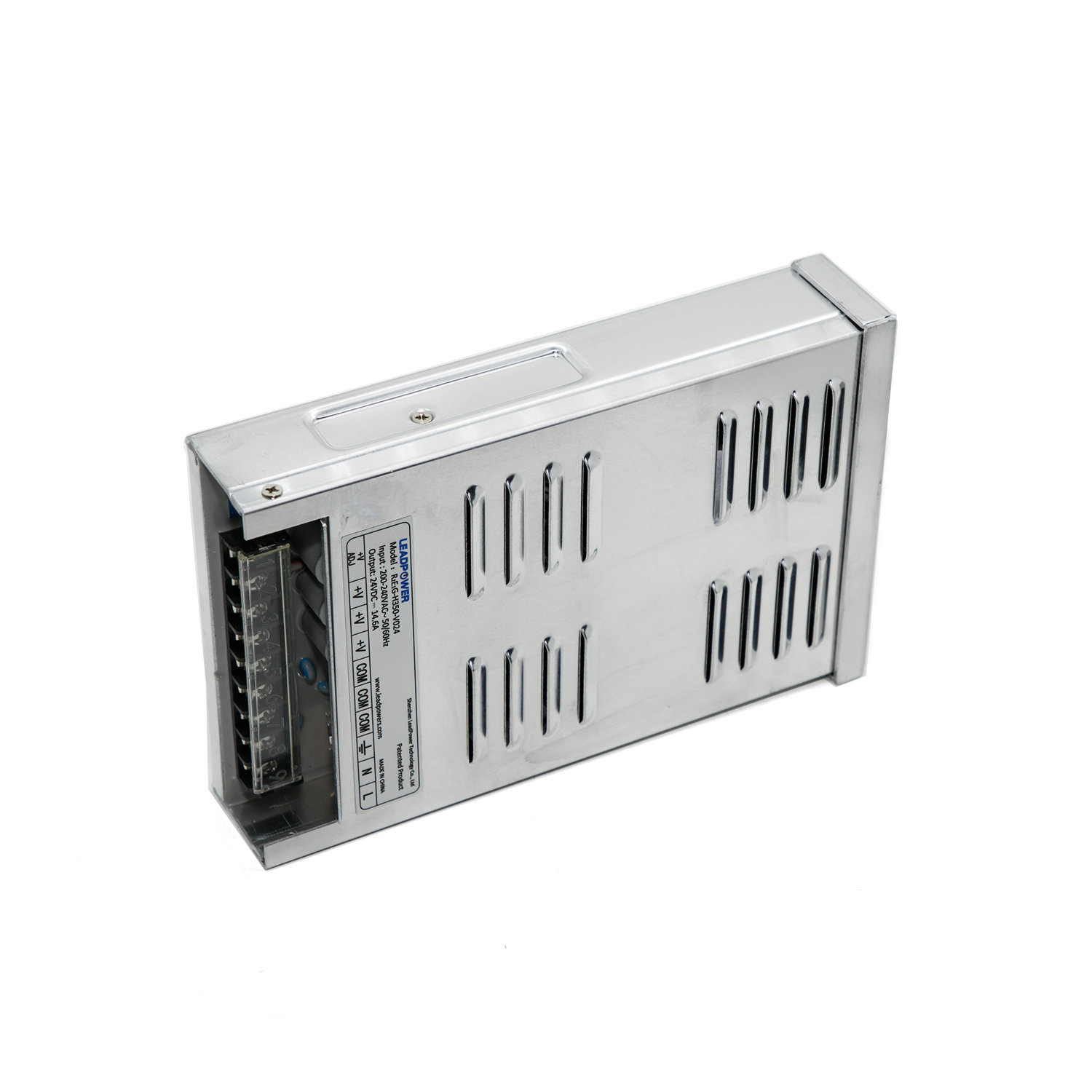

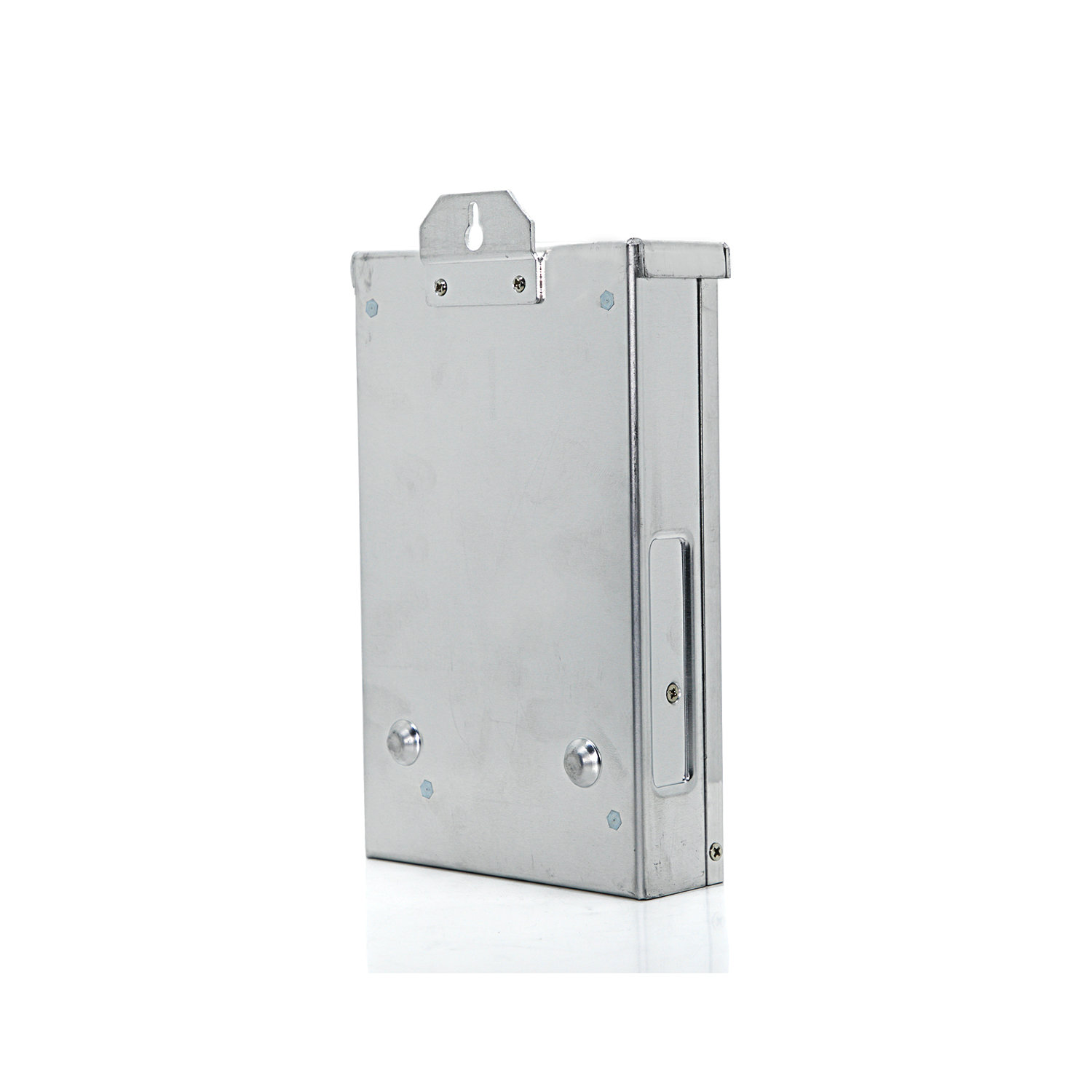

| Model | RCN-H350-V024 | ||||
| Input | Rated Input Voltage | 200-240Vac | |||
| Input Voltage Range | 190～264Vac | ||||
| Frequency Range | 47～63（Typ. 50/60）HZ | ||||
| Max. Input Current | ≤5A | ||||
| Inrush Current | ≤90A | ||||
| No load Power Consumption | ≤3W | ||||
| Output | Rated output voltage | 24V | |||
| Output Voltage Adj. Range | 24±2.4Vdc | ||||
| Rated Output Current | 14.6A | ||||
| Max. Output Current | 14.6A | ||||
| Max. Output Power | 350W | ||||
| Efficiency | ≥89（Typ. 90） | ||||
| Output Ripple & Noise | ≤200mVp-p | ||||
| Dynamic Response Overshoot | ≤5% | ||||
| Dynamic Response Recovery Time | 400μs | ||||
| Line regulation | ±0.5% | ||||
| Load regulation | ±1% | ||||
| Voltage tolerance | ≤±1% | ||||
| Power off Hold Time | ≥10ms | ||||
| Output Rise Time | ≤50ms | ||||
| Power on/Power off Overshoot | ≤±10% | ||||
| Power On Delay Time | ≤3s | ||||
| Environment Condition | Range of working temperature | -20~+50（Typ.25） | |||
| Storage temperature | -30~+85（Typ. 25） | ||||
| Relative Humidity | 20～90% | ||||
| Cooling Method | Forced-Air Cooling | Built-in fan (do not block the air duct of the fan when using, so as not to affect normal use) | |||
| Atmospheric Pressure | 70～106Kpa | ||||
| Altitude | 0～5000m | ||||
| Safety &EMC | Leakage Current | Input To FG | ≤1mA | 240Vac/60Hz | |
| Input To Output | ≤0.25mA | ||||
| Dielectrical Strength | Input To Output | 3000Vac/10mA/1min | No arc, no breakdown |
||
| Input To FG | 1500Vac/10mA/1min | ||||
| Output To FG | 500Vdc/10mA/1min | ||||
| Insulation resistance | Input To Output | ≥10MΩ@ 500Vdc | 1atm, 90%RH, 500VDC | ||
| Input To FG | ≥10MΩ@ 500Vdc | ||||
| Output To FG | ≥10MΩ@ 500Vdc | ||||
| Surge | Test voltage: ±1kV/Line-Line; cri te rion B ±2kV /Line-FG; cri te rion B |
||||
| Protection | Over voltge protection | 26~29V | Hiccup mode, recovers automatically after fault condition is removed. | ||
| Over Current Protection | 18-22A | ||||
| Over-temperature protection | 55-65℃ | Ambient Temperature, Rated load | |||
| Output short-circuit protection | Recovers automatically after fault condition is removed. | ||||
| Reliability | MTBF | 25℃：100000Hrs，MIL-217 Method | |||
| Others | Dimension | 221*130*49（L*W*H） | |||
| Cooling method | √Ventilation Cooling ⬜air cooling | ||||
| Extension method | ⬜Three-proofing lacquer ⬜Stamped ⬜Low temperature start-up（-40℃）⬜Others |
||||
| Note | *Unless otherwise specified, all specifications are measured at an input of 230VAC, rated load, 25°C. *In order to extend the service life, it is recommended to leave an additional 30% margin when configuring the load. For example, if the device requires 100W of power, the power supply of not less than 130W is selected. * Switching power supply ripple test method: test on the power supply output terminal with a 20MHz oscilloscope, the ground length of the oscilloscope probe is not more than 12mm, and the probe input is paralleled with 47uF electrolytic capacitors and 0.1uF high frequency capacitors. *The power supply is part of the equipment system components, and all EMC tests need to be confirmed in conjunction with the end equipment for electromagnetic compatibility. |
||||
